Clinical Inspection Laboratory Centrifuge | Low-Speed TDZ5 |
Laboratory Centrifuge Table Import At Room Temperature

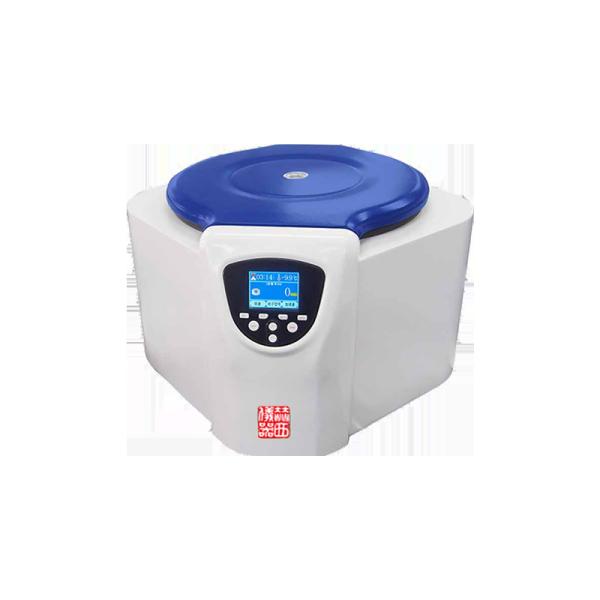

TDZ5 table top low speed normal temperature centrifuge details
This series centrifuge is widely used in experiments and scientific
research in biology, chemistry, medicine, agriculture and forestry,
food safety, blood station, clinical trials and other fields.
Equipped with a variety of tube racks and adapters, it is an ideal
choice for clinical testing and laboratory analysis.
TDZ5 table top low-speed centrifuge at room temperature
1. Adopt single chip microcomputer from Yingruien company and drive
module from Infineon Company, with independently developed control
board and large torque BRUShless DC motor, stable operation and low
noise, provide comfortable laboratory environment.
2. With overspeed, overtemperature, unbalance, undervoltage,
overvoltage and other warning functions, three-level damping shock
absorption, special combination of shock absorption device, make
the motor stable operation, safe and reliable, prevent samples from
hanging, to achieve excellent centrifugal effect.
3. Tft-lcd true color display, touch screen button and solid button
dual operation mode, with centrifugal force display special key,
display set parameters and running parameters, running parameters
can be changed at any time, no need to stop the operation interface
intuitive, simple, easy to use; The operation menu is available in
multiple languages (Chinese, English, Russian, Portuguese).
4. Biosafety Airtight Angle rotor adopts silicone rubber integral
sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and
fully ensure the safety of staff and laboratory environment.
5.TDZ5 table low speed normal temperature centrifuge rear
austenitic 304 stainless steel centrifuge cavity with all steel
sprayed shell, one punching steel front face and three layers of
steel protective cover and other security devices, not only
durable, but also to ensure the safety of staff and laboratory use.
6.100V-230V wide voltage design, improve the centrifuge to the
voltage adaptation range (optional).
7.TDZ5 table normal temperature low-speed centrifuge adopts silent
electromechanical motor lock, easy to use, just close the door
cover gently, the door lock system will be triggered, the door
cover will be locked safely.
8.10 speed up and 10 speed down control, can store 20 groups of
user defined programs, convenient to call common programs, boot for
the last used program.
9. Aero forged aluminum rotor (Angle rotor only) and various
polyamide fiber adapters are optional, which can centrifugal all
kinds of MTP microporous plates, PCR plates, cell culture plates
and deep hole plates.
10.TDZ5 low-speed normal temperature centrifuge table, with CFDA
record and CFDA production qualification, passed ISO 9001 (2015)
certification and ISO 13485 (2016) certification.
| Technical Parameters |
| Product Name | TDZ5 |
| Max Speed(r/ min) | 5000 |
| Max Rcf(×g) | 4800 |
| Max Capacity | 4×100 ml |
| Timer | 1-99h59min/Series/Short-time centrifugation |
| Speed Accuracy | ±50r/min |
| Run Program | 20 Program |
| Control and drive system | high-torque DC brushless
motor, microcomputer control |
| Total Power | 450 w |
| Noise | ≤60dB |
| Power supply | AC220V 50Hz |
| Net Weight | 35 Kg |
| Size(L×W×H) | 600×540×360 mm |
Matched Rotor Parameter:
| Product Name | Capacity | TDZ5 |
| Max Speed(r/ min) | Max Rcf(×g) |
| Swing rotor | 48×5 ml | 4000 | 2960 |
48×5 ml/2 ml (Vacuum tube) | 4000 | 2960 |
76×5 ml/2 ml (Vacuum tube) | 4000 | 3080 |
| 24×15 ml/10ml | 4000 | 2960 |
| 32×10 ml/15ml | 4000 | 2960 |
| 4×50 ml | 5000 | 4600 |
| 8×50 ml | 4000 | 2960 |
| 4×100 ml | 5000 | 4800 |
| Horizontal microplate rotor | 2×2×96 holes | 4000 | 2360 |
