Clinical Medical Small Centrifuge | TG16MW Convenient High-Speed
Centrifuge | Medical Centrifuge
This centrifuge has exquisite design as for the machine volume is
only 380*260*310mm, but centrifuge Rcf can up to 18780 xg,and
centrifugal flux can up to 12*10ml. The size is less than HR/T16MM,
but the capacity is larger. This item is one of the smallest high
speed centrifuge.
HEREXI company, specializing in medical centrifuges for 15 years,
is suitable for the centrifuge of a large number of sample
solutions, reduce startup time, improve efficiency, HEREXI export
centrifuge has excellent temperature control performance, fast
refrigeration, is the ideal choice for cell separation
It is widely used in experiments with small sample size, many
steps, large centrifugal force and low temperature requirements.
Such as: biochemistry, genetic engineering, agriculture and
forestry disciplines, food hygiene, hospitals and other research
units of laboratory sample separation.

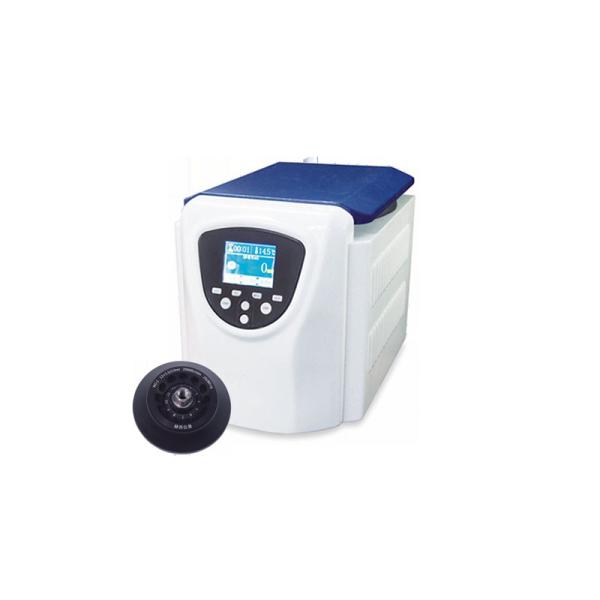

TG16MW table top high speed centrifuge
1. Adopt single chip microcomputer and infineon drive module, with
independent research and development control board and large torque
DC brushless motor, the fastest up and down speed of 25 seconds,
stable operation and low noise, to provide a comfortable laboratory
environment.
2. With overspeed, overtemperature, unbalance, undervoltage,
overvoltage and other warning functions, three-level damping shock
absorption, special combination of shock absorption device, make
the motor stable operation, safe and reliable, prevent samples from
hanging, to achieve excellent centrifugal effect.
3. Tft-lcd true color display, touch screen button and solid button
dual operation mode, with centrifugal force display special key,
display set parameters and running parameters, running parameters
can be changed at any time, no need to stop the operation interface
intuitive, simple, easy to use; The operation menu is available in
multiple languages (Chinese, English, Russian, Portuguese).
4. Biosafety Airtight Angle rotor adopts silicone rubber integral
sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and
fully ensure the safety of staff and laboratory environment.
5. The rear austenitic 304 stainless steel centrifugal chamber with
all steel sprayed shell, one punching forming steel front face and
three layers of steel protective sleeve and other security devices,
not only durable, but also to ensure the safety of staff and
laboratory use.
6.100V-230V wide voltage design, improve the centrifuge to the
voltage adaptation range (optional).
7. Compact and multi-purpose high speed centrifuge, saving
laboratory limited table space.
8.TG16MW bench high speed centrifuge adopts mute electromechanical
motor lock, easy to use, just close the door cover gently, the door
lock system will be triggered, the door cover will be locked
safely.
9.10 speed up and 10 speed down control, can store 20 groups of
user defined programs, convenient to call common programs, boot for
the last used program.
10. Multi-specification aviation forged aluminum rotor, suitable
for 1.5mL to 10mL centrifugal tube.
11.TG16MW bench high speed centrifuge has the CFDA record and CFDA
production qualification, and has passed the ISO 9001 (2015)
certification and ISO 13485 (2016) certification.
| Technical Parameters |
| Model Name | TG16MW |
| Max Speed(r/ min) | 16500 |
| Max Rcf(×g) | 18780 |
| Max Capacity | 12×10 ml |
| Timer | 1-99h59min |
| Run Program | 20 sets |
| Control and drive system | AC converter motor,microcomputer control |
| Total Power | 350 w |
| Noise | ≤60dB |
| Power supply | AC220V 50Hz |
| Net Weight | 17 Kg |
| Size(L×W×H) | 380×260×310mm |
Matched Rotor Parameter:
| Product name | Capacity | Max speed(r/min) | Max Rcf(×g) |
| Angle rotor | 12×1.5/2.0 ml | 16500 | 18780 |
| 24×1.5/2.0 ml | 14000 | 18220 |
| 10×5 ml | 14000 | 13520 |
| 8×7 ml | 14000 | 12271 |
| 12×10 ml/5ml | 12000 | 13400 |
