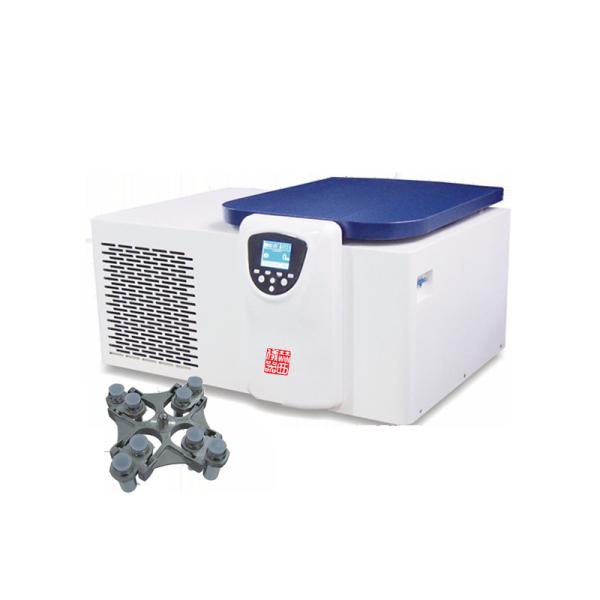

Taiwan Low Speed Refrigerated Centrifuge TDL5M
A low-speed frozen centrifuge is ideal equipment for platelet
separation and radioimmunity of different particles densities.It is
mainly applied in biochemical products, science and technology
research, food safety, medicine and health care, blood stations,
hospital medical science and technology education and production
departments of molecular biochemistry, sanitation and other
industries.
The TDL5M low-speed cryotype bench centrifuge is widely used for
experimental and scientific research in the fields of biology,
chemistry, medicine, agriculture and forestry, food safety, blood
stations, clinical trials and so on.
Characteristics of a TDL5M desktop low-speed frozen centrifuge:
1. Adopt Ingram single-chip machine and Infineon drive module, with
independent research and development of control board and large
torque AC brushless motor, to operate stable and low noise, to
provide a comfortable laboratory environment.
2. Adopt fluorine-free refrigeration compressor set and
environmentally friendly refrigerant R404a, with a wide temperature
control range: -20℃ - ± 40℃, and can be set during centrifuge
operation; prefabricated cooling function, rapid cooling to setting
temperature; standby cooling function, can maintain set temperature
in standby state, and heating frost function.
3. It has various early warning functions such as overspeed,
overtemperature, imbalance, underpressure and excessive pressure,
tertiary damping shock absorption, special combination shock
absorption device, to make the smooth operation of the motor safe
and reliable, prevent sample resuspension, and achieve excellent
centrifugal effect.
4.TFT-LCD real color display, touch screen button and physical
button double operation mode, with centrifugal force display
special keys, and display set parameters and operation parameters,
can change parameters at any time during operation, no shutdown,
operation interface intuitive, simple, easy to use; operation menu
can provide multiple languages (Chinese, English, Russian and
Portuguese).
5. Biosafety gas tightness angle rotor adopts silicone rubber
integral sealing ring (EU RoHS 2015 / 863), which can avoid aerosol
spillover and fully ensure the safety of staff and laboratory
environment.
6. The rear Austenitic 304 stainless steel centrifugal chamber is
combined with all-steel spray molding shell, one stamping molding
steel front face and three-layer steel protective cover and other
security devices, which are not only strong and durable, but also
ensure the safety of staff and laboratory use.
7. The silent electromechanical motor door lock is used and easy to
use. Only gently close the door cover, which will trigger the door
lock system and lock the door cover safely.
8.10 gear acceleration and 10 gear deceleration speed control, can
store 20 groups of user custom programs, convenient to call the
common program, the boot is the last use program.
9. Aeronautical forged aluminum rotors (angle rotor only) and
various polyamide fiber adapters can be centrifuged from various
MTP microplates, PCR plates, cell culture plates and deep pore
plates.
10. Have the CFDA filing and CFDA production qualification, and
have passed the ISO 9001 (2015) certification and ISO 13485 (2016)
certification.
| Host technical parameters |
| product model | TDL5M |
| Maximum rotational speed (r / min) | 5500 |
| Maximum centrifugation force (g) | 4800 |
| max. cap | 4×500 ml |
| Time range | 1 – 99h59min / Continuous / short-time centrifugation |
| Noise, sound | ≤60 dB |
| Electricity, source | AC220V 50Hz |
| Temperature control scope | -20℃～+40℃ |
| Temperature regulation accuracy | ±1℃ |
| refrigeration system | Fluoror-free refrigeration compressor unit |
| action routine | Twenty |
| Speed accuracy | ± 50 r/min (customizable to demand, multiple of 10) |
| Control and drive system | Large-torque AC brushless motor, microcomputer control |
| power | 1.8KW |
| Heavy, quantity | 110 Kg |
| Overall dimensions (long, width and height) | 630×760×400 mm |
Rotor parameters:
| product name | TDL5M |
| Capacity, quantity | Speed Speed (r / min) | centrifugal force (×g) |
| Angle rotor | 12×10 ml/15ml | 5500 | 3140 |
| Horizontal rotor | 485 ml common tube | 4000 | 2960 |
48×5 ml/2 ml (Vacuum extraction blood vessels) | 4000 | 2960 |
76×5 ml/2 ml (Vacuum extraction blood vessels) | 4000 | 3080 |
| 24×10 ml/15ml | 5000 | 4620 |
| 32×10 ml/15ml | 4000 | 2960 |
| 4×50 ml | 5000 | 4600 |
| 8×50 ml | 4000 | 2960 |
| 4×100 ml | 5000 | 4800 |
| 4,250 ml Flat bottom | 4000 | 2780 |
| 4×500 ml | 4000 | 3580 |
| Horizontal microplate plate rotor | 2296 holes | 4000 | 2360 |
